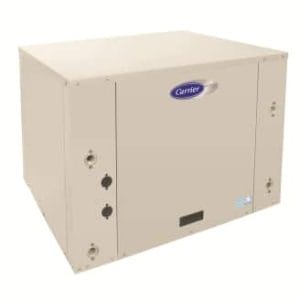

GT-PC Geothermal Heat Pump - 50YG

GT-PC Geothermal Heat Pump – 50YG

Contact us to request service or request an estimate. We offer Emergency 24hr service too! For After Hour Emergency Service please call 847-742-3486 ext. 302 or call 630-549-5944 for After Hour Emergency Estimates.

Our normal hours are 8am – 4pm.

Category:

Description

Aside from its efficiency, this model offers excellent comfort control and system diagnostics plus an internal loop pump to save the cost of a separate component. Top it off with the comfort created by a variable speed blower and 2-stage compression for one impressive unit.

Perhaps best of all is a Federal tax credit still available on qualified geothermal heating and cooling systems. So, you can revel in getting a tax credit of up to 30% of your installed cost of a geothermal system.

Additional information

KEY FEATURES

STANDARD
Two-stage scroll compressor for ultimate comfort and reliable performance
Variable-speed blower motor for ultimate comfort and quiet operation
Superior dehumidification and temperature control
Insulated cabinet for quiet operation
Large operating temperature range
Corrosion-resistant air coil for long life
Stainless steel drain pan
Onboard variable-speed loop pump saves the cost of an additional component
2' MERV 11 filtration
Non-ozone depleting Puron® refrigerant
10-year parts and labor limited warranty1
OPTIONAL
Supplemental, domestic hot water generation
Externally-mounted auxiliary heat available on vertical units
1 To the original owner, when installed in an owner-occupied residence, a 10-year parts limited warranty and 5-year labor limited warranty for major refrigerant circuit components (including compressors, heat exchangers, and expansion and reversing valves), and a 2-year labor limited warranty for all other parts. See warranty certificate for details.

SPECIFICATIONS

EFFICIENCY
Closed loop cooling: Up to 29.4 EER
Closed loop heating: Up to 4.7 COP
Open loop cooling: Up to 35.1 EER
Open loop heating Up to 5.3 COP
ENERGY STAR® qualified in all sizes
PERFORMANCE
Summer dehumidification is compressor and blower motor enhanced
Excellent cold weather performance
Sound: ultra quiet fan sound levels
TECHNOLOGY
High-efficiency, variable-speed blower motor
Two-stage scroll compressor
Sound enhancements: Fully insulated cabinet and double-isolation compressor mounting system
Electronic control board
CAPACITIES
2-6 ton cooling
24,000-72,000 Btu/h heating
INSTALLATION
Vertical upflow
Horizontal
Vertical downflow
REQUIREMENTS
208/230 V
AESTHETICS
Heavy-duty, galvanized steel cabinet
Epoxy-coated in taupe metallic paint
