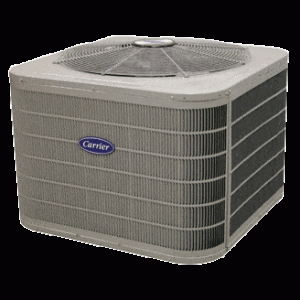

Infinity® 18VS Heat Pump

Contact us to request service or request an estimate. We offer Emergency 24hr service too! For After Hour Emergency Service please call 847-742-3486 ext. 302 or call 630-549-5944 for After Hour Emergency Estimates.

Our normal hours are 8am – 4pm.

Category:

Description

The Infinity 18VS heat pump is different in a lot of ways. It offers variable-speed compression that can step down in 5 stages to as low as 25% of its capacity. That’s huge from a comfort perspective. The ability to run in lower speeds most of the time makes it quieter and more adept at removing humidity in the summer. It’s also significantly better than a 2-stage unit at keeping temperatures even. Plus, those lower speeds are the sweet spot for the unit’s best efficiency levels and for getting the most benefit out of other systems you might have like an air purifier because of more constant air flow through the system.

And, it’s seldom you can upgrade your system a component at a time. Most often, the leap to higher efficiency and better comfort via a communicating system for that home you love, can mean you have to deal with the cost of a whole system even though only your outdoor cooling unit has called it quits. The Infinity 18VS could change that for you. Your Carrier® expert can help you determine if it can work with your existing indoor unit so you can upgrade in steps.

Additional information

KEY FEATURES

STANDARD
Up to 18 SEER cooling efficiency
Up to 11 HSPF heating efficiency
Sound: as low as 55 decibels1
Optimal humidity and temperature control when managed by the Inifinty Touch control
Variable, 5-stage compressor operation for ultimate comfort and quiet
Compressor sound blanket and Silencer System II™ design
Filter drier system protection from moisture and contaminants
Ideal Defrost heating operation with Infinity control
WeatherArmor™ Ultra protection
Non-ozone depleting Puron® refrigerant
10-year parts limited warranty2
OPTIONAL
Optional labor warranty available3
1 Quietest size within each model group during most common cooling operating condition. 2 Ask your Carrier® dealer for details. 3 To the original owner, when product is used in a residence, a 5-year seacoast corrosion parts limited warranty. See warranty certificate for complete details.

SPECIFICATIONS

EFFICIENCY
Up to 18 SEER
Up to 11 EER
Up to 12.5 HSPF
Select sizes meet ENERGY STAR® qualifications1
PERFORMANCE
Optimal summer dehumidification when managed by the Infinity Touch control
Variable, 5-stage compressor operation as low as 25% capacity up to 100%
Excellent cold weather performance with better heating capacity than 2-stage units
Hybrid Heat® system compatible
Sound: as low as 55 decibels2
Soft start and smooth ramp up to higher operating speeds
TECHNOLOGY
Integrated inverter control drives compressor and fan motor
Designed for highest efficiencies when part of a communicating Infinity system but compatible with 2-stage thermostats and suitable non-communicating indoor products for 2-stage operation
System protecting high and low pressure switches
Sound reduction: pressure equalizer valve, soft start, compressor sound blanket, Silencer System II™ design and forward swept fan blades
Filter drier
Infinity level advanced diagnostic intelligence
Recommended control: Infinity Touch control
CAPACITIES
2-4 ton
REQUIREMENTS
208-230 V
AESTHETICS
Heavy-gauge, galvanized steel construction
Baked-on, durable powder coat paint
Steel, louvered coil guard
1 Proper sizing and installation of equipment is critical to achieve optimal performance. Split system air conditioners and heat pumps must be matched with appropriate coil components to meet ENERGY STAR criteria. Ask your contractor for details or visit http://www.energystar.gov. 2 Quietest size within each model group during most common operating condition.
